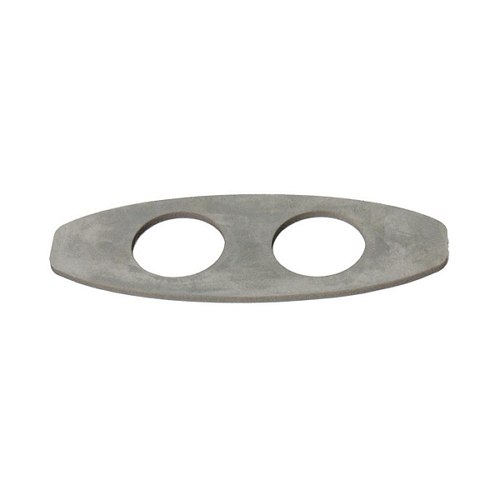

Flush Cleat Backing Plate, Small

56512, 56513, 56514, 56516, 56517
PRODUCT INFORMATION

304 Stainless Steel

Part # Description Std Pk Class* Fits Part #
56512 Backing Plate 48 B 56520
56513 Backing Plate 48 B 56521
56514 Backing Plate 48 B 56393
56516 Backing Plate 48 B 56530/56391
56517 Backing Plate 48 A 56531/56392
* Inventory Class
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.

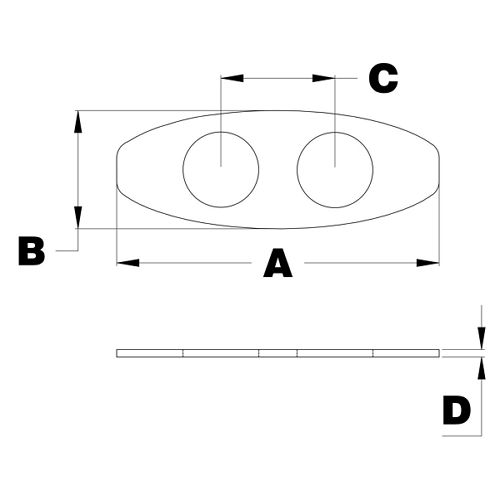

DIMENSIONS

Swipe table to get more infomation.


Part # A B C D
56512 5-1/8" 1-7/8" 1-13/16" 1/8"
56513 7-1/4" 2-5/16" 2-3/8" 1/8"
56514 7-15/16" 2-1/16" 2-13/16" 1/8"
56516 5-1/4" 1-7/16" 1-13/16" 1/8"
56517 7-1/4" 1-7/8" 2-3/8" 1/8"
