Round

17780, 17781, 17782, 17783, 17784, 17785, 17786, 17787, 17788, 17789
PRODUCT INFORMATION



Part # Material Button Finish Ring Finish Std Pk Class*
17780 Brass Lacquered Lacquered 150 B
17781 Brass Chromed Chromed 150 B
17782 Brass Chromed Lacquered 150 B
17783 Plastic Gold Gold 150 B
17784 Plastic Chromed Chromed 150 B
17785 Plastic Chromed Gold 150 B
17786 Brass Satin Satin 150 B
17787 304 SS Polished Polished 150 A
17788 304 SS Brushed Polished 150 A
17789 Brass / SS Lacquered Brass Polished SS 150 B
* Inventory Class
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.

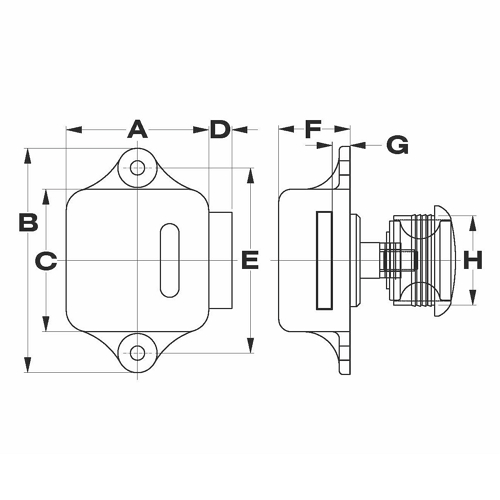

DIMENSIONS


A B C D E F G H
1-9/16" 2-15/32" 1-9/16" 1/4" 2-3/64" 25/32" 3/16" 1"

Cutout Dia. Applicable Door Thickness Fastener
1” 5/8” - 7/8” #6 (not included)
Note: Strike plate not included.
