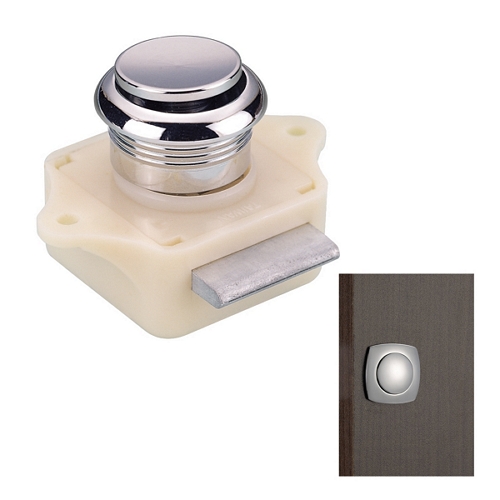

17790, 17793, 17794
PRODUCT INFORMATION



Part # Material Button Finish Ring Finish Std Pk Class*
17790 316 SS Polished Polished 150 A
17793 Plastic Chromed Chromed 150 B
17794 Plastic Gold Gold 150 B
* Inventory Class
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.



DIMENSIONS


A B C D E F G H
1-9/16" 2-15/32" 1-9/16" 1/4" 2-3/64" 25/32" 3/16" 1"

Cutout Dia. Applicable Door Thickness Fastener
1” 3/4” – 1” #6 (not included)
Note: Strike plate not included.
