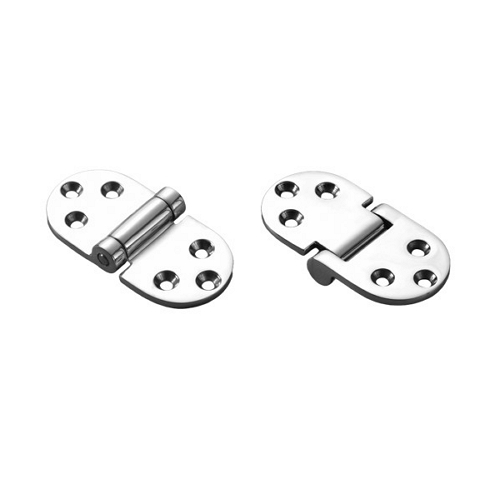

1.5" x 3", Round
56744R, 56744T
PRODUCT INFORMATION
316 Stainless Steel / Bright Polish
Swipe table to get more infomation.
| Part # | Description | Pin | Torque Rating | Std Pk | Class* |
|---|---|---|---|---|---|
| 56744R | Torque Hinge, 1.5" x 3", Round, Reversed Pin | Bottom | 30 kgf/cm±15% | 50 | B |
| 56744T | Torque Hinge, 1.5" x 3", Round, Top Pin | Top | 30 kgf/cm±15% | 50 | B |
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.

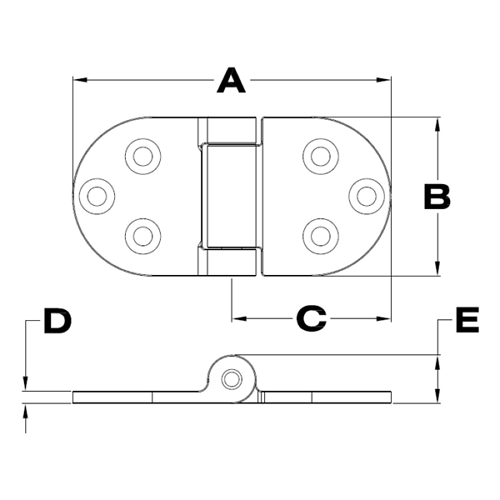

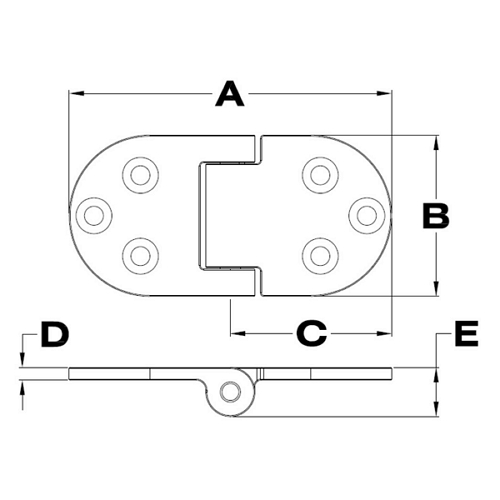

DIMENSIONS
Swipe table to get more infomation.
| Part # | A | B | C | D | E | Fastener |
|---|---|---|---|---|---|---|
| 56744R | 3" | 1-1/2" | 1-1/2" | 1/8" | 7/16" | #8 (not included) |
| 56744T | 3" | 1-1/2" | 1-1/2" | 1/8" | 7/16" | #8 (not included) |
