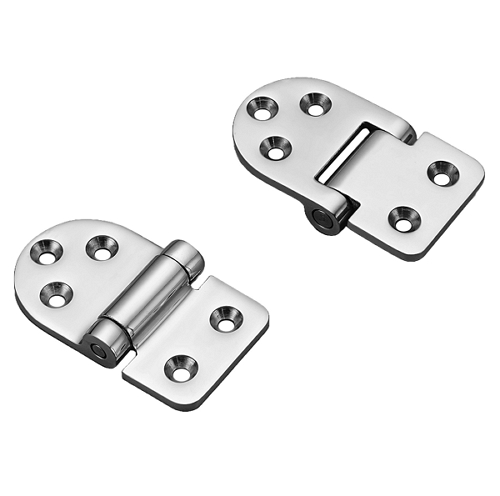

1-1/2" x 2-5/8", Round & Square

56748R, 56748T
PRODUCT INFORMATION

316 Stainless Steel / Bright Polish

Swipe table to get more infomation.

Part # Description Pin Torque Rating Std Pk Class*
56748R Torque Hinge, 1-1/2" x 2-5/8", Round & Square, Reversed Pin Bottom 30 kgf/cm±15% 50 B
56748T Torque Hinge, 1-1/2" x 2-5/8", Round & Square, Top Pin Top 30 kgf/cm±15% 50 B
* Inventory Class
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.

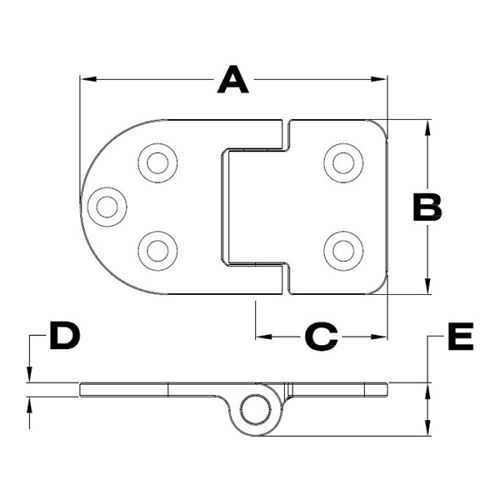

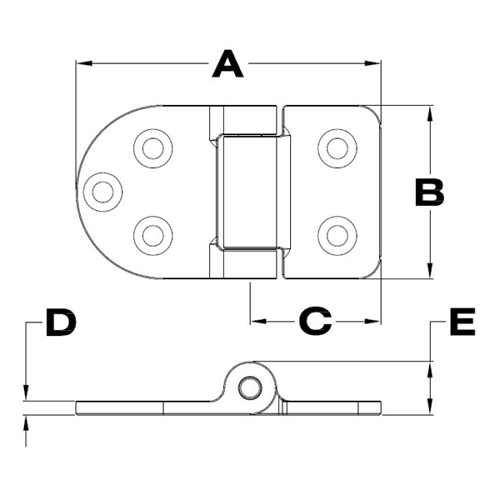

DIMENSIONS



Swipe table to get more infomation.


Part # A B C D E Fastener
56748R 2-5/8" 1-1/2" 1-1/8" 1/8" 7/16" #8 (not included)
56748T 2-5/8" 1-1/2" 1-1/8" 1/8" 7/16" #8 (not included)
