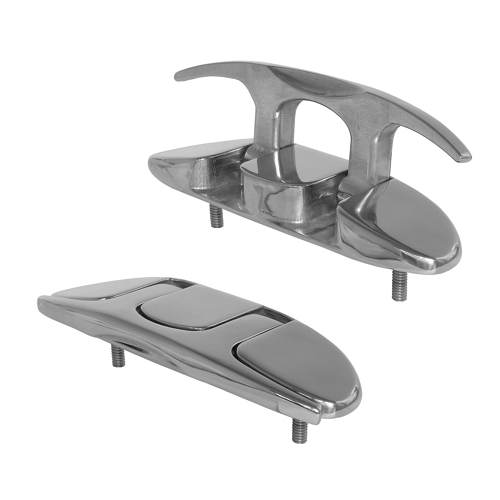

Folding Cleats, Stud Mount
56395, 56399, 56396, 56397, 56380, 56381
PRODUCT INFORMATION
316 Stainless Steel / Bright Polish
Swipe table to get more infomation.
| Part # | Description | Std Pk | Class* | Replacement Hardware Kit |
|---|---|---|---|---|
| 56395 | 4-1/2" Folding Cleat, Stud mount | 12 | A | 56395KT |
| 56399 | 5-5/8" Folding Cleat, Stud mount | 12 | A | 56396KT |
| 56396 | 6-3/4" Folding Cleat, Stud mount | 12 | B | 56396KT |
| 56397 | 8-1/8" Folding Cleat, Stud mount | 12 | B | 56397KT |
| 56380 | 10-1/4" Folding Cleat, Stud mount | 4 | B | 56380KT |
| 56381 | 13-3/8" Folding Cleat, Stud mount | 2 | B | 56381KT |
A. Catalog items typically kept in stock and available for immediate shipment.
B. Catalog items where inventory levels are determined by customer forecasts. May require lead time for new orders.
C. Produced from custom tooling and stocked to purchase orders only.

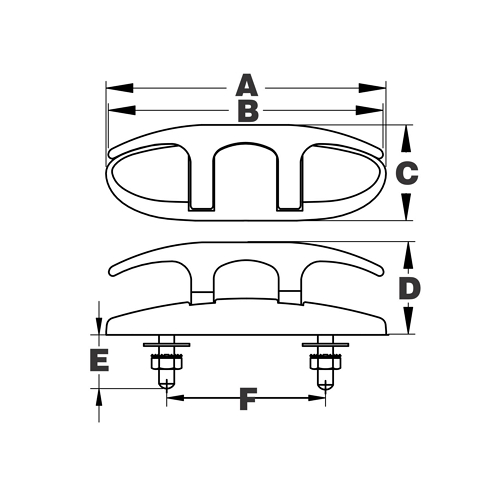

DIMENSIONS
| Part # | A | B | C | D | E | F | Fastener |
|---|---|---|---|---|---|---|---|
| 56395 | 4-9/16" | 4-1/2" | 1-9/16" | 1-1/2" | 1-5/8" | 2-5/8" | SS nuts & washers included |
| 56399 | 5-11/16" | 5-5/8" | 2-1/16" | 1-7/8" | 1-13/16" | 3-9/16" | SS nuts & washers included |
| 56396 | 6-7/8" | 6-3/4" | 2-3/8" | 2-3/16" | 1-3/4" | 4-1/2" | SS nuts & washers included |
| 56397 | 8-1/4" | 8-1/8" | 2-7/8" | 2-5/8" | 2" | 5-3/8" | SS nuts & washers included |
| 56380 | 10-5/8" | 10-1/4" | 3-5/16" | 3-1/8" | 3-1/16" | 6-11/16" | SS nuts & washers included |
| 56381 | 13-13/16" | 13-3/8" | 4-3/16" | 3-7/8" | 3" | 8-1/2" | SS nuts & washers included |
